12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure

12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure

Nombre De La Marca:	FY
Número De Modelo:	FY-51CZ
Cuota De Producción:	1 juego
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad De Suministro:	300 conjuntos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Shanghai, China

Certificación:

Reforzamiento:

1-4 alambre de las capas

Rango:

6-51 milímetros

cantidad de dados:

10 sets

Exactitud:

0.01 mm

Presión del sistema:

30MPa

Potencia del motor:

3.6kw

Voltaje:

12v/24v (opcional)

Fuerza de engasta:

600T

Destacar:

Máquina prensadora de manguera hidráulica automática, 12v, 24v, accionamiento por batería, prensador

Detalles de empaquetado:

Caja de madera estándar de exportación

Capacidad de la fuente:

300 conjuntos por mes

Resaltar:

600T Hydraulic Hose Crimping Machine

0.01mm Accuracy Hose Crimper

30MPa Pressure Hydraulic Crimper

Descripción del producto

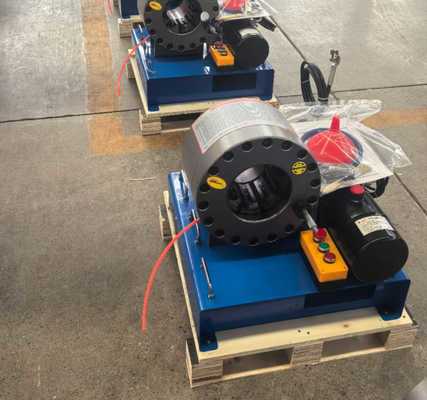

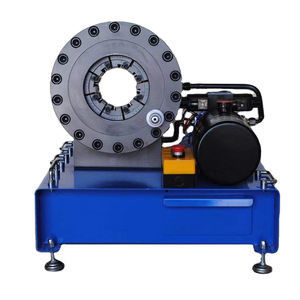

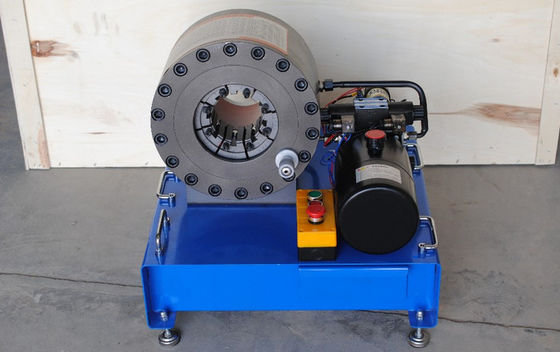

12V/24V Automatic Hydraulic Hose Crimping Machine

The 12V/24V Automatic Hydraulic Hose Crimping Machine is a professional-grade tool designed for efficient crimping of hydraulic hoses up to 2 inches in diameter. This battery-driven crimper delivers exceptional performance for automotive, construction, and industrial applications, combining convenience with reliable operation.

Key Features

Dual Voltage Operation: Works with both 12V and 24V power sources for versatile use in vehicles and field applications
Automatic Functionality: Ensures consistent, precise crimping results with minimal operator effort
Wide Crimping Capacity: Handles hoses from 6mm to 51mm (1/4" to 2") diameter

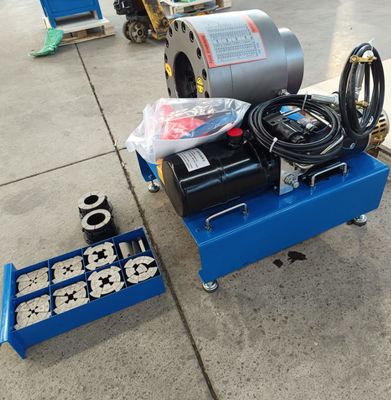

Comprehensive Die Set: Includes 10 high-quality dies for various hose sizes and types
Portable Design: Compact and lightweight for easy transport to job sites
High Power Force: Delivers 600T crimping force for secure connections

Advantages

Enhanced Productivity: Automatic operation reduces hose preparation time significantly
Precision Engineering: Advanced hydraulic technology ensures accurate, uniform crimps
Cost Efficiency: Eliminates need for multiple machines with its versatile operation
User-Friendly: Intuitive controls suitable for both beginners and professionals
Safety Features: Built-in mechanisms ensure secure operation

Technical Specifications

Model	FY-51CZ Pipe Crimping Machine
Crimping Range	6-51mm (1/4-2 inch)
Crimping Force	600T
Max. Opening	114mm
Die Sets	10
System Pressure	30Mpa
Accuracy	0.01mm
Standard Voltage	12V/24V
Motor Power	3.6KW
Dimensions (LxWxH)	650x600x600mm
Weight	170KG

Note: Customized die sets with different shapes and sizes are available. Both 12V and 24V voltage options are supported.

Optional Accessories

Quick Change Tool
Quick Change Die Set Rack
Car installing unit

Forged Cylinder

One-piece structure prevents oil leakage, saves transfer time, and increases productivity. 12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 6

Micrometer

FY51CZ features high accuracy dial with 0.01mm precision. 12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 7

Die Set Reference Sheet

Comprehensive guide for selecting proper die sets for different crimping sizes. 12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 8
