Máquina que prensa de la manguera de goma

2 Inch 600T Crimping Force Rubber Hose Crimping Machine With 6-51mm Range And 10 Interchangeable Dies

2 Inch 600T Crimping Force Rubber Hose Crimping Machine With 6-51mm Range And 10 Interchangeable Dies

Nombre De La Marca:	FanYing
Número De Modelo:	FY-51QY
Cuota De Producción:	1 juego
Precio:	negotiable
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad De Suministro:	10000 conjuntos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

China, Shangai

Peso:

310KG

Presión del sistema:

31.5MPA

Material:

Nombre:

Máquina que prensa de la manguera de goma

Garantía:

1 año

Fuerza de engasta:

Tipo:

máquina que prensa

Nombre del producto:

Máquina prensadora de manguera de goma de fuerza que prensa 600T de 2 pulgadas con rango de 6-51 mm

Detalles de empaquetado:

Caja de madera estándar

Capacidad de la fuente:

10000 conjuntos por mes

Resaltar:

600T Crimping Force Rubber Hose Crimping Machine

6-51mm Crimping Range Hydraulic Hose Crimper

10 Interchangeable Dies Hose Crimping Equipment

Descripción del producto

2 Inch 600T Rubber Hose Crimping Machine

The 2 Inch 600T Rubber Hose Crimping Machine delivers precision and power for demanding hydraulic applications. Engineered with a robust 600-ton crimping force and adjustable 6-51mm range, this advanced machine includes 10 interchangeable dies and features a sophisticated PLC control system for optimal performance.

Key Features

Power600T Crimping Force - Handles tough rubber hoses for secure, reliable crimping in high-pressure applications
Range6-51mm Crimping Range - Versatile compatibility for various hydraulic applications across multiple industries
ControlPLC Control System - Programmable logic controller ensures precise operations and consistent performance
Flexibility10 Interchangeable Dies - Quick-change capability minimizes downtime between different hose sizes
DurabilityRobust Construction - High-quality materials withstand rigorous workshop conditions

Performance Advantages

Enhanced Efficiency - High crimping force and versatile range enable fast processing of hydraulic hoses
User-Friendly Operation - Intuitive interface with PLC control simplifies use for all skill levels
Versatile Applications - Suitable for automotive, construction, manufacturing, and industrial sectors
Cost-Effective Investment - Eliminates need for multiple crimping tools with comprehensive functionality
Safety & Reliability - Engineered safety features protect operators while ensuring high-quality output

Technical Specifications

Specification	Value
Crimping Range	6-51 mm
Crimping Force	600 T
Quantity of Dies	10 sets
Accuracy	0.01 mm
System Pressure	31.5 MPa
Motor Power	3 kW
Voltage Options	220V/240V/380V/415V
Work Efficiency	200 pcs/h
Maximum Open Diameter	114 mm
Machine Dimensions	860 * 640 * 1300 mm
Net Weight	310 kg
Warranty	1 Year

Industrial Applications

The FanYing FY-51QY Electric Hydraulic Rubber Hose Crimping Machine serves multiple industrial sectors including automotive, construction, machinery, mining, aviation, railway, chemical, and oil & gas industries. Ideal for crimping hydraulic and pneumatic rubber hoses, fuel hoses, oil pipes, and various industrial rubber hose applications.

Product Customization & Support

Manufactured in Shanghai, China with comprehensive 1-year warranty. Features include 600T crimping force, 6-51mm crimping range, and compact dimensions of 860*640*1300 mm. Complete technical support available 24/7 with trained technicians providing onsite installation, training, maintenance, and repair services.

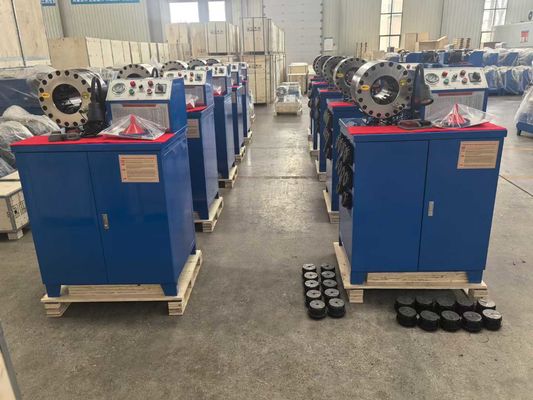

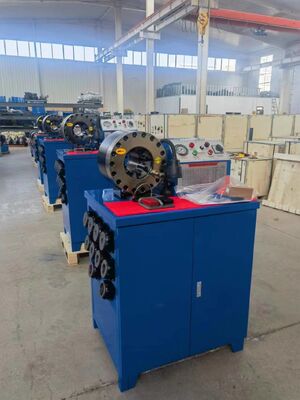

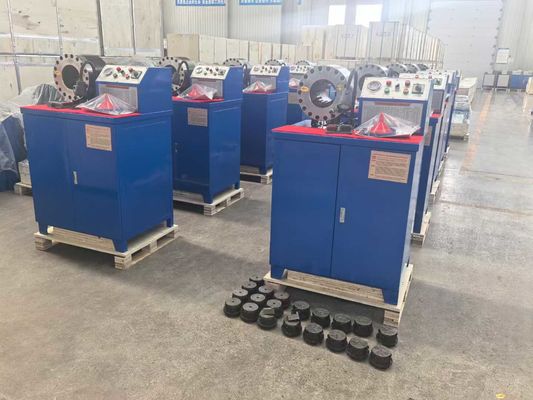

Product Gallery
