600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper

600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper

Nombre De La Marca: FanYing
Número De Modelo: FY-51QY
Cuota De Producción: 1 juego
Precio: negotiable
Condiciones De Pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad De Suministro: 10000 sistemas por mes
Información detallada
Lugar de origen:
China, Shangai
Documento:
Peso:
0,31 toneladas/310 kg
Presión del sistema:
31,5 MPa
Material:
Caucho/Manguera
Nombre:
Máquina que prensa de la manguera de goma
Garantía:
12 meses/365 días
Fuerza de prensado:
600t/0.6MT
Tipo:
Máquina prensadora/engarzadora
Nombre del producto:
Máquina prensadora de mangueras de caucho de 2 pulgadas, modelo superior, 600T, fuerza de 220 V/240
Color:
Azul o según demanda del cliente.
Detalles de empaquetado:
Caja de madera estándar
Capacidad de la fuente:
10000 sistemas por mes
Resaltar:

600T Crimping Force Rubber Hose Crimping Machine

,

6-51mm Crimping Range Hydraulic Hose Crimper

,

10 Interchangeable Dies Hose Crimping Equipment

Descripción del producto

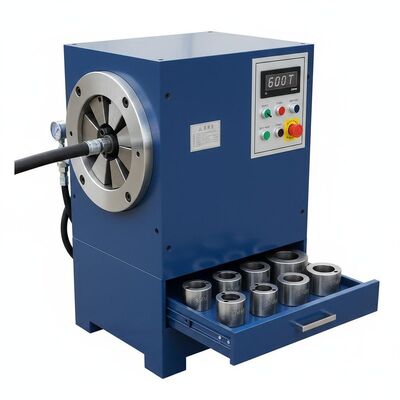

2 Inch Higher Model 600T Rubber Hose Crimping Machine

Introducing the Blue Electric 600T Rubber Hose Crimping Machine, designed for high efficiency and performance in hydraulic applications. With an impressive crimping force of 600 tons and a powerful 3 kW motor, this machine is perfect for hydraulic repair shops, automotive service centers, and oil industries in the USA, Europe, and Southeast Asia. Its versatile crimping range of 6mm to 51mm, along with 10 interchangeable dies, makes it an essential tool for professionals looking for reliability and versatility.

Key Features

  • High Crimping Force: The machine delivers a strong 600T crimping force, ensuring secure and reliable connections suitable for high-pressure hydraulic systems.

  • Powerful Motor: With a robust 3 kW motor, this machine offers enhanced performance and reduced operational time, making it a reliable choice for busy workshops.

  • Versatile Crimping Range: Capable of crimping hoses ranging from 6mm to 51mm, it is adept at handling various hose sizes, making it suitable for multiple hydraulic applications.

  • 10 Interchangeable Dies: The inclusion of 10 interchangeable dies allows for easy and quick adjustments between hose sizes, improving workflow efficiency.

  • Aesthetic and Durable Design: Finished in a vibrant blue color, this machine not only looks professional but is also built to last, ensuring longevity and reliability in demanding environments.

Advantages

  1. Increased Efficiency: The combination of high crimping force and a powerful motor significantly enhances productivity, allowing technicians to complete more jobs in less time.

  2. Cost-Efficient Solution: This crimping machine consolidates multiple functions into one, reducing the need for additional equipment and saving on both initial investment and maintenance costs.

  3. Consistent Quality: The robust design ensures that each crimp meets stringent quality standards, reducing the risk of leaks and failures in hydraulic connections.

  4. Widely Applicable: Perfect for a variety of sectors, including hydraulic repairs, automotive services, and the oil industry, providing versatility in use.

  5. Minimal Maintenance Needs: The durable construction minimizes breakdowns and maintenance requirements, allowing for a focus on productivity rather than repairs.

600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 0
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 1
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 2
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 3
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 4
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 5
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 6
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 7
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 8
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 9
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 10
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 11
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 12
600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Hose Crimper 13
Technical Specifications
Crimping Range 6-51 mm
Crimping Force 600 T
Quantity of Dies 10 sets
Accuracy 0.01 mm
System Pressure 31.5 MPa
Motor Power 3 kW
Voltage Options 220V/240V/380V/415V
Work Efficiency 200 pcs/h
Maximum Open Diameter 114 mm
Machine Dimensions 860 * 640 * 1300 mm
Net Weight 310 kg
Warranty 1 Year
Operational Advantages
  • Enhanced Efficiency: Strong crimping force and quick-change dies increase workshop productivity
  • Cost-Effective Solution: Accommodates multiple hose sizes, reducing equipment investment
  • User-Friendly Operation: Intuitive design requires minimal training for technicians
  • Dependable Performance: Heavy-duty construction minimizes operational interruptions
  • Multi-Industry Application: Suitable for hydraulic repair, automotive service, and oil industries
Industrial Applications
The FanYing FY-51QY Electric Hydraulic Rubber Hose Crimping Machine serves multiple industrial sectors including automotive, construction, machinery, mining, aviation, railway, chemical, and oil & gas industries. Ideal for crimping hydraulic and pneumatic rubber hoses, fuel hoses, oil pipes, and various industrial rubber hose applications.
Product Support & Customization
Manufactured in Shanghai, China with comprehensive 1-year warranty. Complete technical support available 24/7 with trained technicians providing onsite installation, training, maintenance, and repair services.
Frequently Asked Questions
What sizes of hoses can this machine crimp?
The rubber hose crimping machine can handle hoses ranging from 6mm to 51mm, making it suitable for various rubber hose applications.
How does the fast change mould system enhance workflow?
The fast change mould system allows for quick swaps between dies, significantly reducing downtime and enhancing workflow efficiency in busy settings.
What is the maximum crimping force of this machine?
This machine offers an impressive crimping force of 600 tons, capable of securely crimping high-pressure rubber hoses.
Is this machine suitable for heavy-duty applications?
Yes, designed for high crimping force, this machine is ideal for heavy-duty applications in hydraulic and automotive fields.
How durable is the construction of this machine?
Constructed from high-quality materials, the machine is built for longevity and reliability, even with continuous use in demanding environments.
Professional-Grade Performance: The 2 Inch 600T Rubber Hose Crimping Machine is an essential tool for professionals in the hydraulic and automotive industries. With its high crimping force, versatile design, and user-friendly operation, it boosts productivity and ensures reliable hose management. Invest in this high-performance rubber hose crimping machine to meet your operational demands and achieve outstanding results in your crimping applications!
